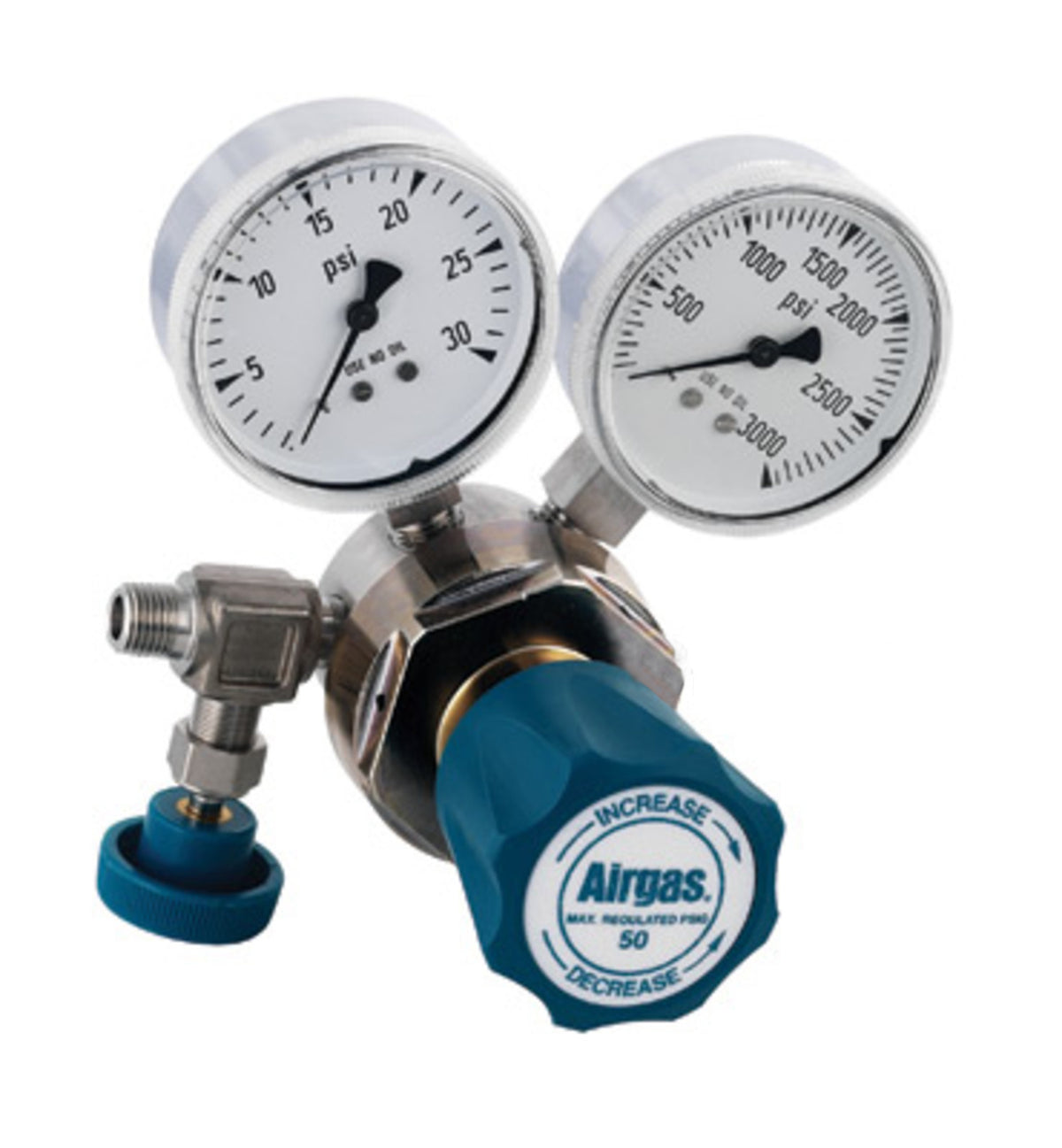

Airgas Model C484D Stainless Steel Corrosive Service Single Stage Standard Model Regulator

Product Description

These regulators are recommended for use with acid-forming gases where brass and copper-free systems are required. The proven, low maintenance design features a PCTFE seat for wide media compatibility. Note: A Cross-Purge Assembly must be used in conjunction with these models in order to ensure effective purging of hazardous gas traces during cylinder change out.

Features

• Filtered Seat: For added gas stream purity and extended service life. PCFTE Seat: Provides wide range of media compatibility. Large, 2 1/2" Stainless Steel Gauges: Permits accurate, easy reading. Sintered Stainless Steel Filter: Protects parts, extends service life. Note: Due to the corrosive nature of the gases used with this regulator, a cross purge assembly is required to maintain the warranty and for safety.

Specifications

Model » C484D Usage » Corrosive Service Material » Stainless Steel Regulator Type » Single Stage Regulator » Specialty Application Regulator Outlet Connection » 1/4" MNPT Instrument Valve Max Outlet Pressure » 100 psig Gauge Diameter » 2 1/2"

• Stage: Single Stage
• Brand: Airgas
• Material: Stainless Steel
