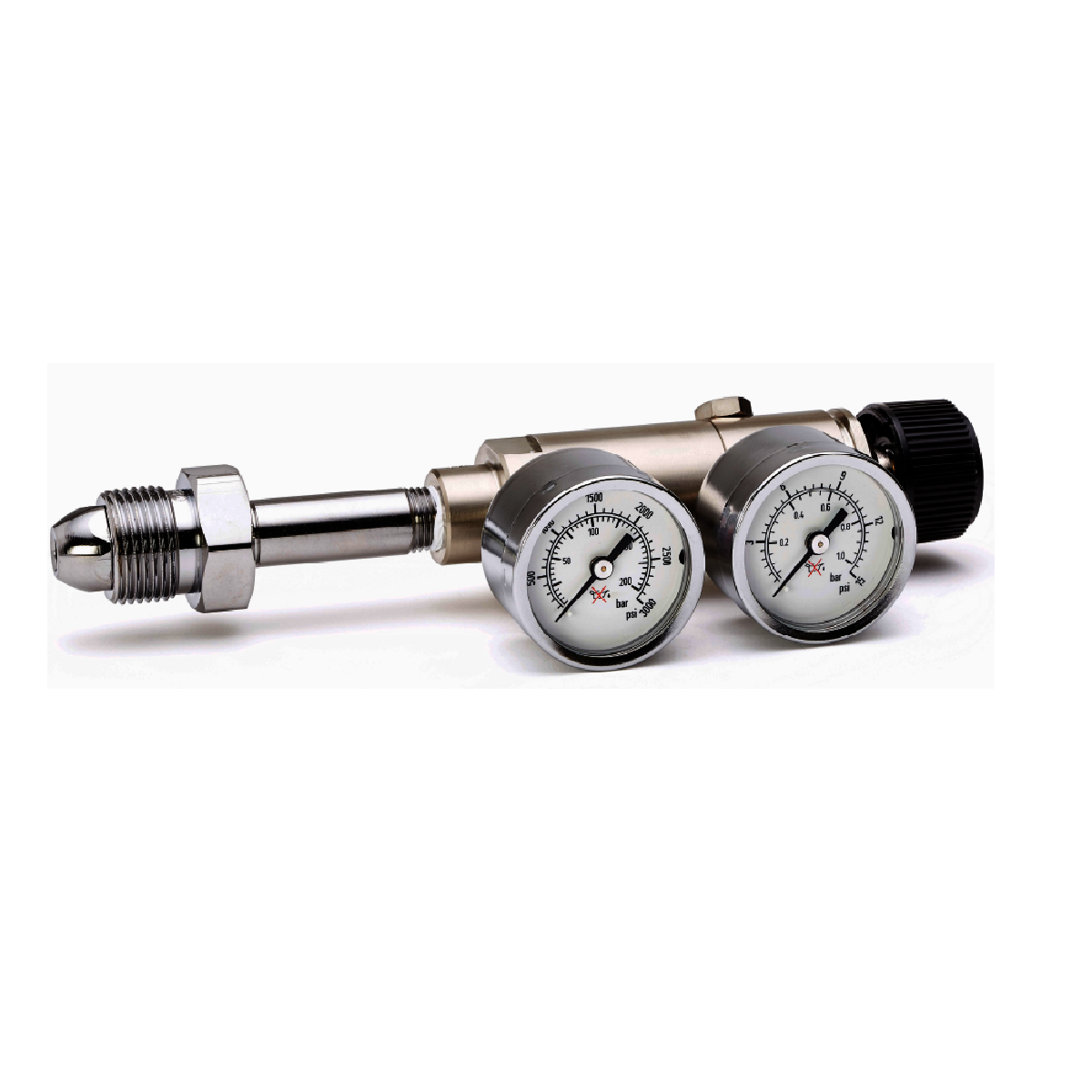

Airgas Model 14D580 Nickel-Plated Brass High Purity Two Stage Regulator With CGA-580 Connection

Product Description

Model 14 Series regulators are recommended wherever precise, low-pressure delivery of high-purity gases is needed. Compact, two-stage design provides constant delivery pressure with no need for periodic readjustment. Nickel-plated brass construction protects gas purity and ensures long regulator life when used with noncorrosive gases.

Features

• Two-stage design eliminates the need to readjust delivery pressure as inlet pressure decreases Stainless steel diaphragm on the second stage minimizes diffusion of air into regulator to eliminate off-gassing Sintered filter protects the internal parts and extends the life of the regulator Low internal dead volume minimizes purge time Economical, with many years of proven service life

Specifications

Model » 14 Usage » High Purity Material » Nickel-Plated Brass Regulator Type » Two Stage Regulator Inlet Connection » CGA-580 Outlet Connection » 1/8" NPT Female Max Outlet Pressure » 100 psig

• Connection: CGA-580
• Stage: Two Stage
• Brand: Airgas
• Material: Nickel-Plated Brass
