Product Description

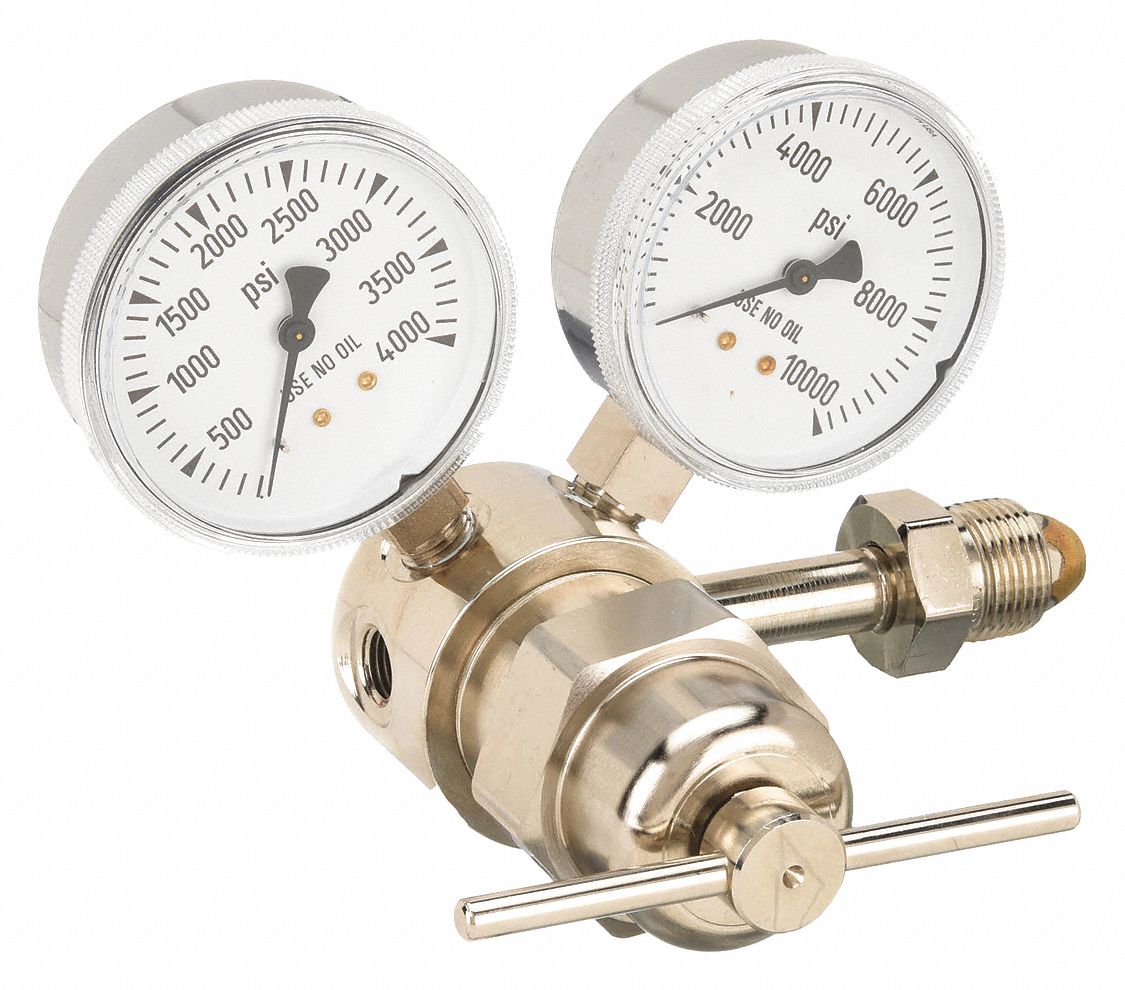

This series of Airgas® heavy-duty high pressure cylinder regulators is recommended for use on cylinders or panel mounting with a wide variety of non-corrosive inert gases. This series is ideally suited for high-pressure testing, purging and charging, calibration kits, manufacturing processes and RandD laboratories. The Airgas® heavy-duty high-pressure cylinder regulator’s piston sensor design provides structural reliability in high-pressure applications. The low torque control knob and self-relieving feature permit easy adjustment of pressure in closed or dead-end systems. The 820 Series is configurable for most applications.

Features

  • Excellent Value high quality and economically priced. Bar Stock Body affords low internal volume. Large Non-corrosive Gauges 2 brass, shatter resistant polycarbonate lenses. Wide Industry Applications including chemical plant, airline charging carts, RandD laboratories.

Specifications

Maximum Inlet Pressure: 6,000 psig Maximum Outlet Pressure: 2,000 psig Capacity: 3,000 scfh @ Max Delivery Pressure Inlet Gauge Range: 0 - 10,000 psig Outlet Gauge Range: 0 - 4,000 psig Outlet Pressure Ranges: 0 - 2,000 Weight: 8 lbs Ports: (4) 1/4" FNPT

  • Brand: Airgas
  • Material: Brass
View full details

Technical Specifications

Maximum Inlet Pressure: 6,000 psig
Maximum Outlet Pressure: 2,000 psig
Capacity: 3,000 scfh @ Max Delivery Pressure
Inlet Gauge Range: 0 - 10,000 psig
Outlet Gauge Range: 0 - 4,000 psig
Outlet Pressure Ranges: 0 - 2,000
Weight: 8 lbs
Ports: (4) 1/4" FNPT
Brand
Airgas
Material
Brass

Product Attributes

Model
820H580
Usage
Heavy Duty High Pressure
Material
Brass
Regulator Type
Cylinder Regulator
Inlet Connection
1/4" FNPT
Outlet Connection
1/4" FNPT
Max Outlet Pressure
2000 psig
Gauge Diameter
2 1/2"
