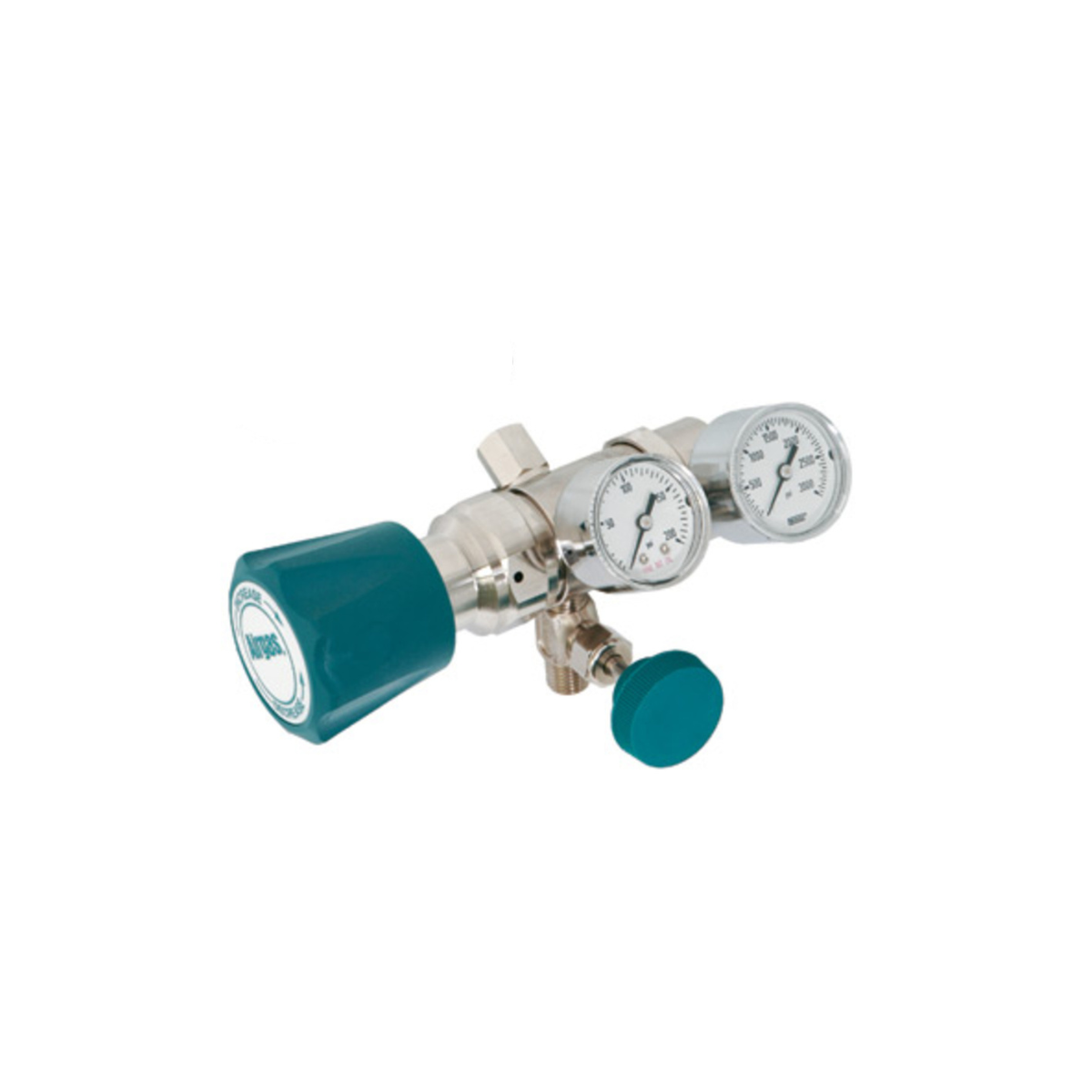

Airgas Model C144B590 Brass Specialty High Purity Low Flow Two Stage Pressure Regulator With 1/4" FNPT Connection

Product Description

These two-stage regulators are specifically designed for low-flow, non-corrosive gas applications where precise delivery pressure is critical. They feature a brass piston sensor in the first stage, a stainless steel diaphragm in the second stage and a preset safety relief valve. A sintered brass filter protects internal parts. These two-stage regulators are also ideal for medical diagnostic applications, such as blood gas analysis, where precise pressure control and low flow rates are required. They are available with a CGA-cylinder valve connection for use on large cylinders.

Features

• Convoluted Stainless Steel Diaphragms: Provides superior leak integrity without contamination from a non-metallic liner or seal. Low Internal Volume: Allows rapid purging and stabilization of gas flow. Low-Flow Design: Provides precise pressure and flow control. Small Size: Enables fast, easy fit up.

Specifications

Maximum Inlet Pressure: 3,000 psig Capacity (scfh @ Max Del. Pressure): 25 Outlet Pressure Range: 0 - 50 psig Relief Valve Setting: 350 psig Delivery Gauge Range: 0 - 100 psig Flow Capacity: Cv= 0.088 Ambient Operating Temperature: -20° F to +140° F Designed Leak Rate: 1 x10-4 ccs (helium) Weight: 3 lbs Ports: (4) 1/8" FNPT and 1/4" FNPT Decay Inlet Characteristic: 0.026/100 psi Piston O-Ring: Viton-A®

• Stage: Two Stage
• Brand: Airgas
• Material: Brass
