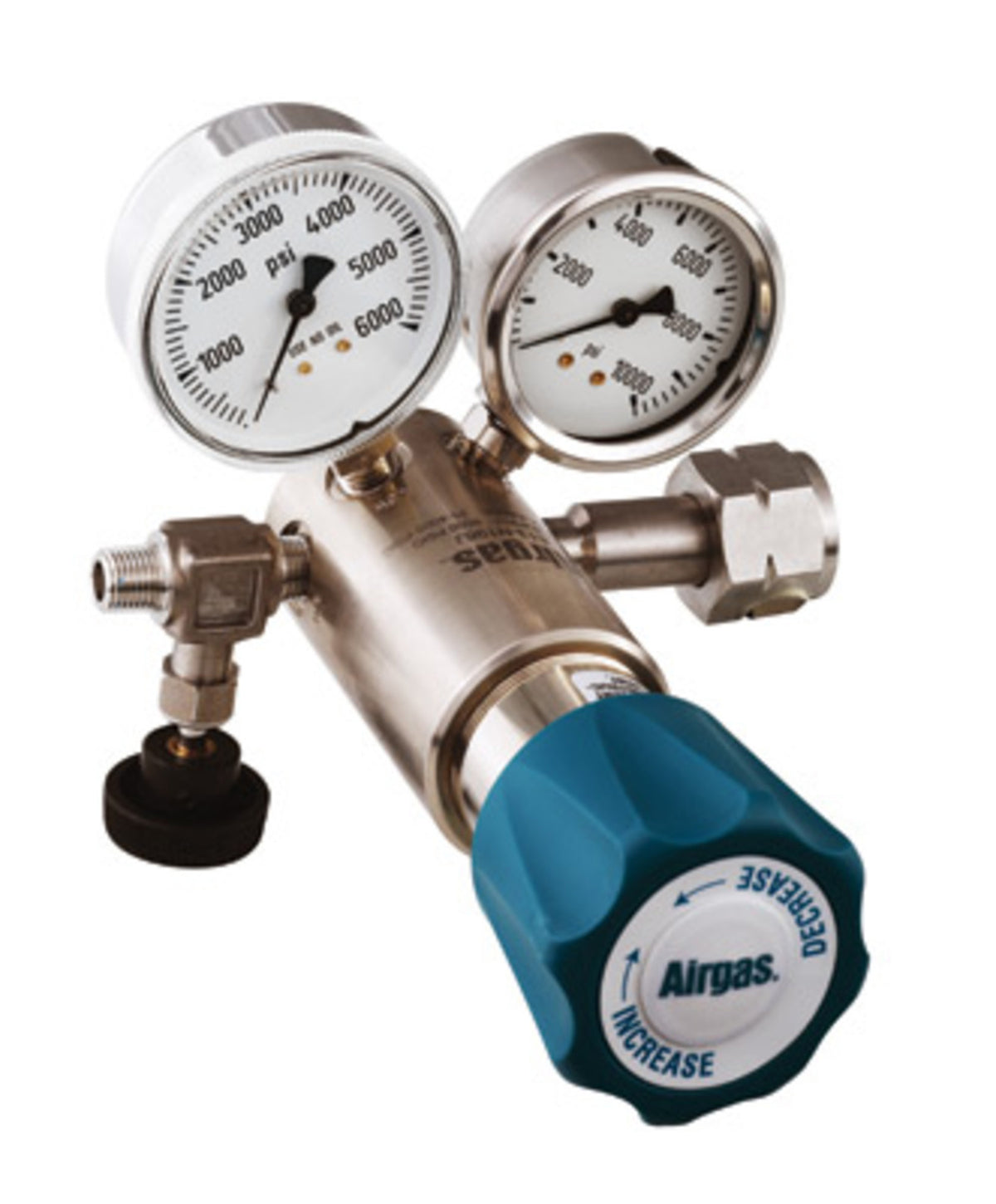

Airgas Model C198K Stainless Steel High Delivery Pressure Self-Venting Single Stage Regulator With 1/4" FNPT Connection

Product Description

Designed for a wide range of pressure settings, these single-stage regulators are recommended for use in petroleum field applications, research laboratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure testing applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 25-micron inlet filter protects internal components.

Features

• Rugged Brass Piston provides increased safety and reliability at high delivery pressures. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of sensor O-ring failure. Standard Threaded Bonnet (with optional collar mount nuts) permits panel mounting. Ultrasonic Cleaning allows high-purity gas handling without costly pre-cleaning.

Specifications

Maximum Inlet Pressure: 10,000 psig Maximum Outlet Pressure: 6,000 psig Capacity: 10,000 scfh @ Max Delivery Pressure Relief Valve Port: No Inlet Gauge Range: 0 - 10,000 psig Delivery Gauge Range: 0 - 6,000 psig Flow Capacity: Cv=0.06 Ambient Operating Temperature: -15° F to +165° F Design Leak Rate: Bubble-Tight (helium) Weight: 3 lbs Ports: (5) 1/4" FNPT Decay Inlet Characteristic: 1.00/100 psi

• Stage: Single Stage
• Brand: Airgas
• Material: Stainless Steel
