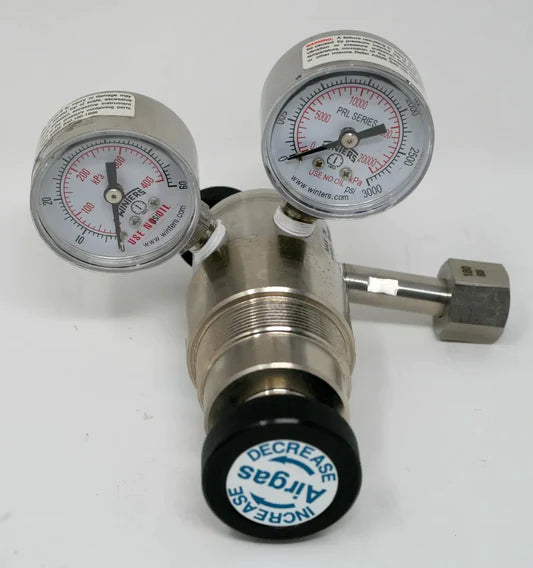

Airgas Model L445A Stainless Steel Specialty High Purity Single Stage Mini Regulator With 1/8" FNPT Connection And SS Diaphragm

Name: Airgas Model L445A Stainless Steel Specialty High Purity Single Stage Mini Regulator With 1/8" FNPT Connection And SS Diaphragm
Brand: ItsMyLe
Price: 683.0 USD
Availability: InStock

$683.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

These compact, single-stage general-purpose and analytical series regulators are ideally suited for lecture bottles and other small cylinders. They are equipped with a CGA-180 connection for easy attachment to Airgas® lecture bottles. Other CGA-connections (110 or 170 CGA’s) are available upon request. Rated to 3,000 psig, these regulators feature a built-in, non-lubricated needle valve that has been designed to regulate outlet flow. NOTE: Choose a brass model for nonanalytical/non-corrosive service, an aluminum model for mildly corrosive service, or a stainless steel model for corrosive service.

View full details

Model

» L445A

Usage

» Specialty High Purity

Material

» Stainless Steel

Regulator Type

» Single Stage Mini Regulator

Inlet Connection

» 1/8" FNPT

Outlet Connection

» 1/8" Compression

Max Outlet Pressure

» 25 psig

Gauge Diameter

» 1 1/2" Brass» 2" SS

Features
Compact Design: Ideal for lecture bottles and small cylinders. Sensitive Diaphragm: Provides accurate pressure settings. 1 1/2" or 2" Gauges: Easy to read at a glance. Large Adjusting Knob: Provides excellent sensitivity over a wide range of settings. Needle Valve: Provides easy control of flow volume.
Specifications
Maximum Inlet Pressure: 3,000 psig Outlet Pressure Range: 0 - 25 psig Capacity (scfh @ Max Del. Pressure): 90 Inlet Gauge Range: 0 - 3,000 psig Delivery Gauge Range: 0 - 30 psig Flow Capacity: Cv= 0.08 Ambient Operating Temperature: -40° F to +165° F Designed Leak Rate: Bubble-Tight (helium) Weight: 1.5 lbs Ports: (3) 1/8" FNPT Decay Inlet Characteristic: 0.58/100 psi
Product Attributes
These compact, single-stage general-purpose and analytical series regulators are ideally suited for lecture bottles and other small cylinders. They are equipped with a CGA-180 connection for easy attachment to Airgas® lecture bottles. Other CGA-connections (110 or 170 CGA’s) are available upon request. Rated to 3,000 psig, these regulators feature a built-in, non-lubricated needle valve that has been designed to regulate outlet flow. NOTE: Choose a brass model for nonanalytical/non-corrosive service, an aluminum model for mildly corrosive service, or a stainless steel model for corrosive service.
