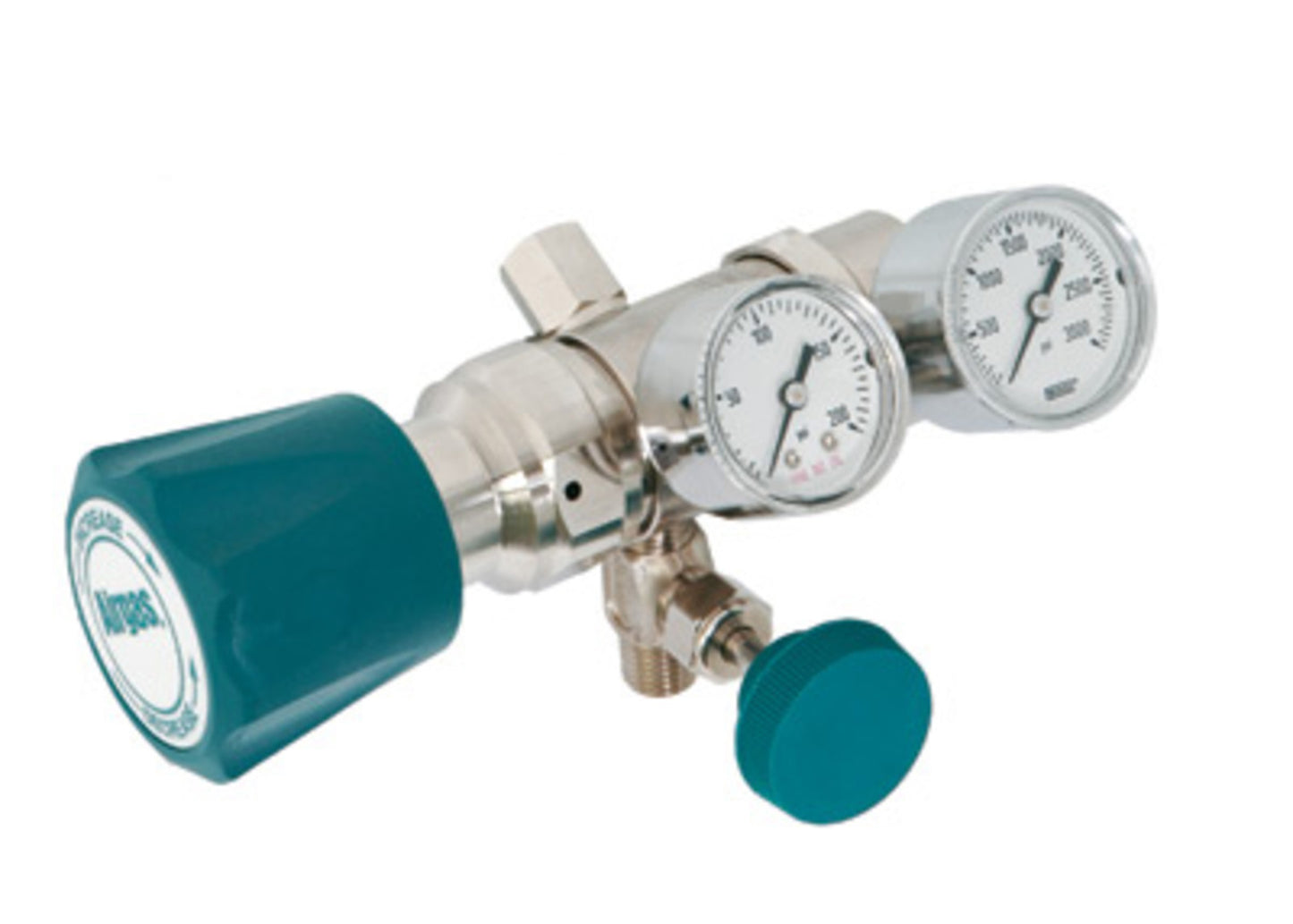

Airgas Model M973 Brass Specialty High Purity Medical Low Flow Two Stage Pressure Regulator With 1/4" FNPT Connection

Product Description

These two-stage regulators are specifically designed for low-flow, non-corrosive gas applications where precise delivery pressure is critical. They feature a brass piston sensor in the first stage, a stainless steel diaphragm in the second stage and a preset safety relief valve. A sintered brass filter protects internal parts. These two-stage regulators are also ideal for medical diagnostic applications, such as blood gas analysis, where precise pressure control and low flow rates are required. They are available with 973 pin-indexed yoke connection for use with E medical cylinders. Not to be used for human consumption or digestion.

Features

• Convoluted Stainless Steel Diaphragms: Provides superior leak integrity without contamination from a non-metallic liner or seal. Low Internal Volume: Allows rapid purging and stabilization of gas flow. Low-Flow Design: Provides precise pressure and flow control. Small Size: Enables fast, easy fit up. Not to be used for human consumption or digestion.

Specifications

Model » M973 Usage » Specialty High Purity Material » Brass Regulator Type » Low Flow Regulator » Two Stage Regulator Inlet Connection » 1/4" FNPT Outlet Connection » 1/4" FNPT Max Outlet Pressure » 50 psig Gauge Diameter » 1 1/2"

• Stage: Two Stage
• Brand: Airgas
• Material: Brass
