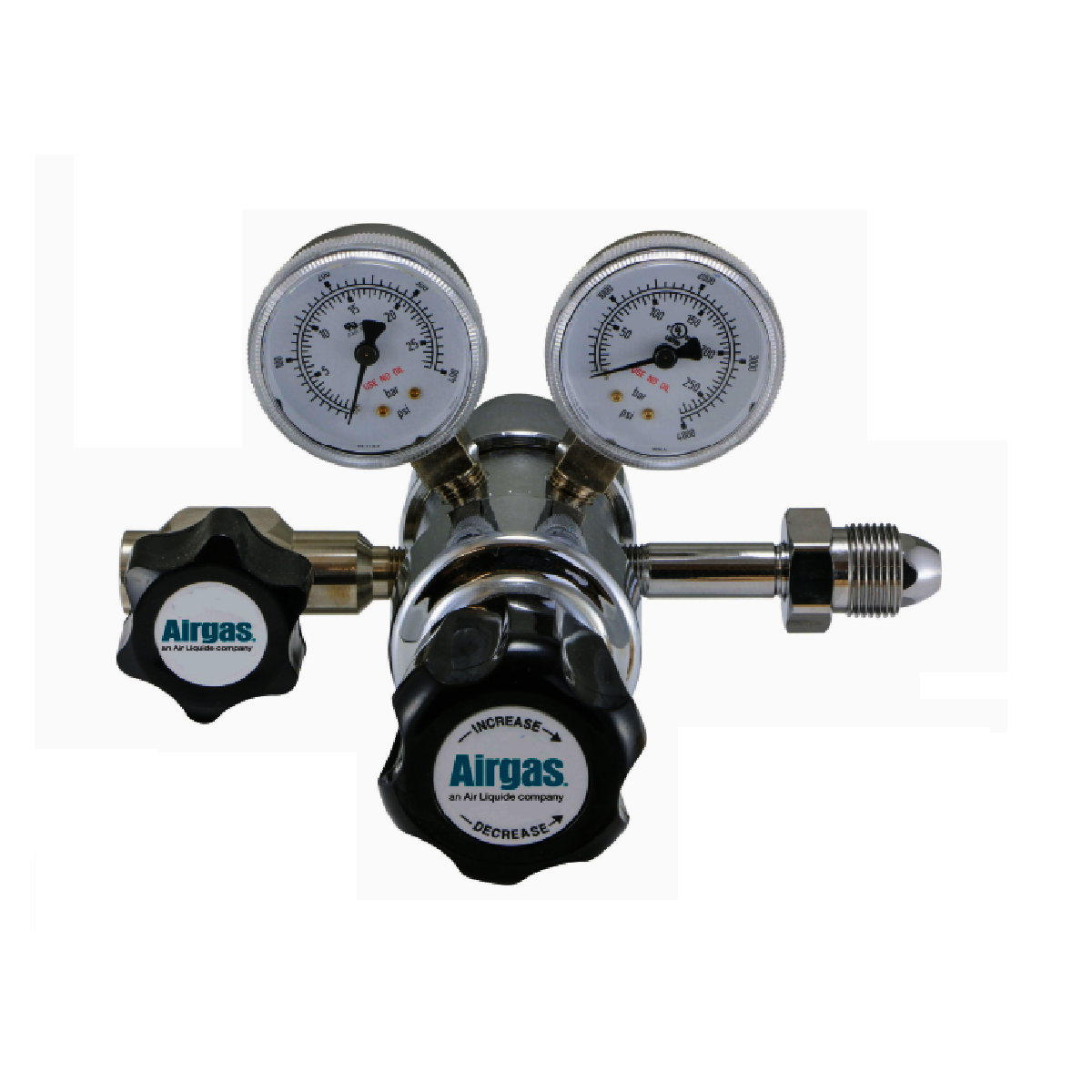

Airgas Model N114G Brass High Delivery Pressure Single Stage Regulator With 1/4" FNPT Connection

Rugged Brass Piston provides increased safety and reliability at high delivery pressures. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of sensor O-ring failure. Standard Threaded Bonnet (with optional collar mount nuts) permits panel mounting. Ultrasonic Cleaning allows high-purity gas handling without costly pre-cleaning.

Model » N114G Usage » High Delivery Pressure Material » Brass Regulator Type » Single Stage Regulator » High Delivery Regulator Inlet Connection » 1/4" FNPT Outlet Connection » 1/4" MNPT Instrument Valve Max Outlet Pressure » 1500 psig Gauge Diameter » 2 1/2"

Designed for a wide range of pressure settings, these single-stage regulators are recommended for use in petroleum field applications, research laboratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure testing applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 25-micron inlet filter protects internal components.
