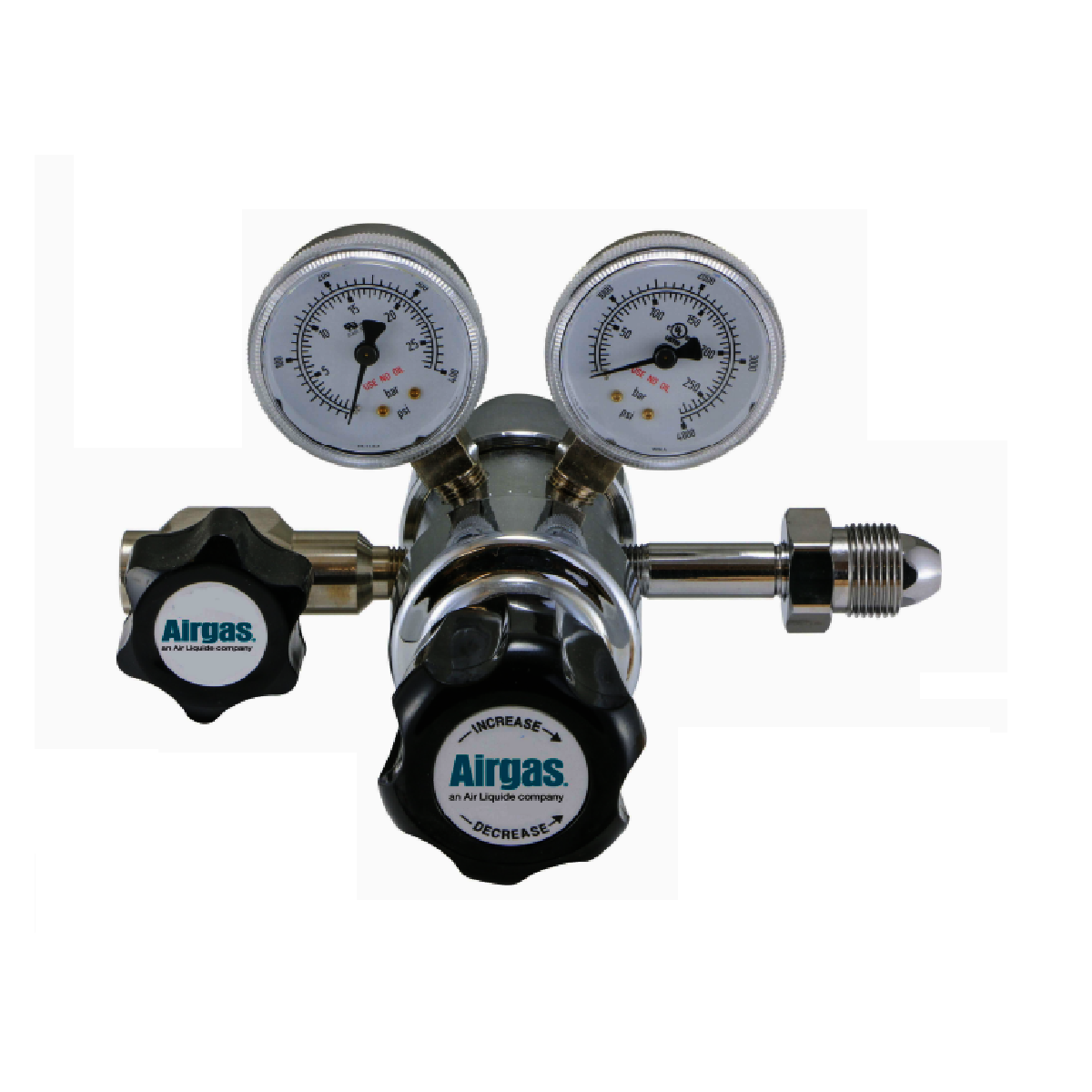

Airgas Model N115H320 Brass High Delivery Pressure Single Stage Regulator With 1/4" FNPT Connection

Product Description

Designed for a wide range of pressure settings, these single-stage regulators are recommended for use in petroleum field applications, research laboratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure testing applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 25-micron inlet filter protects internal components.

Features

• Rugged Brass Piston provides increased safety and reliability at high delivery pressures. Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of sensor O-ring failure. Standard Threaded Bonnet (with optional collar mount nuts) permits panel mounting. Ultrasonic Cleaning allows high-purity gas handling without costly pre-cleaning.

Specifications

Model » N115H320 Usage » High Delivery Pressure Material » Brass Regulator Type » Single Stage Regulator » High Delivery Regulator Inlet Connection » 1/4" FNPT Outlet Connection » 1/4" MNPT Instrument Valve Max Outlet Pressure » 2500 psig Gauge Diameter » 2 1/2"

• Stage: Single Stage
• Brand: Airgas
• Material: Brass
