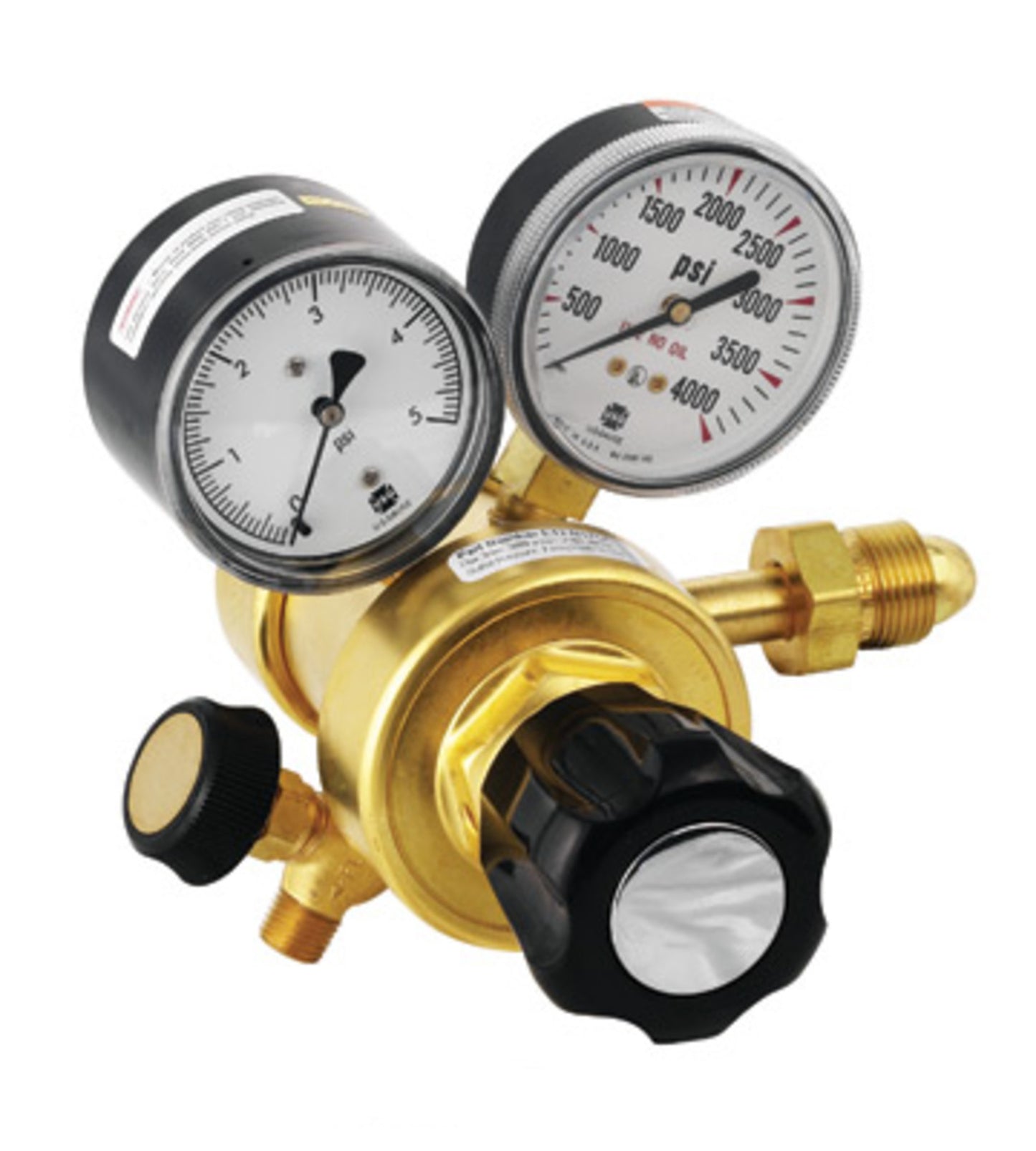

Airgas Model N175A510 Brass Ultra Low Delivery Pressure Two Stage Regulator

Product Description

This two-stage regulator is recommended for use with non-corrosive gases in applications where an ultra-low delivery pressure is required. It maintains an accurate delivery pressure over the life of the cylinder. The two-stage design limits the variations in the outlet pressure to 0.06 psig for every 100 psig of inlet pressure decay. Made of durable, long-lasting forged brass and then chrome plated, this regulator is perfect for non-corrosive, ultra-low delivery pressure gases. A needle valve is included on the outlet.

Features

• Large Elastimeric Diaphragms deliver precise pressure control from full cylinder to almost empty. Sintered Metal Filter protects internal parts and extends service life. Unique Delivery Gauge provides 0.1 psi graduations on the 0 - 2 psi unit and 0.5 psi on the 0 - 6 psi unit. Inter-Stage Relief Valve protects second stage from over-pressurization.

Specifications

Model » N175A510 Usage » Ultra Low Delivery Pressure Material » Brass Regulator Type » Two Stage Regulator » Low Delivery Regulator Outlet Connection » 1/4" NPT male Max Outlet Pressure » 2 psig Gauge Diameter » 2 1/2"

• Stage: Two Stage
• Brand: Airgas
• Material: Brass
