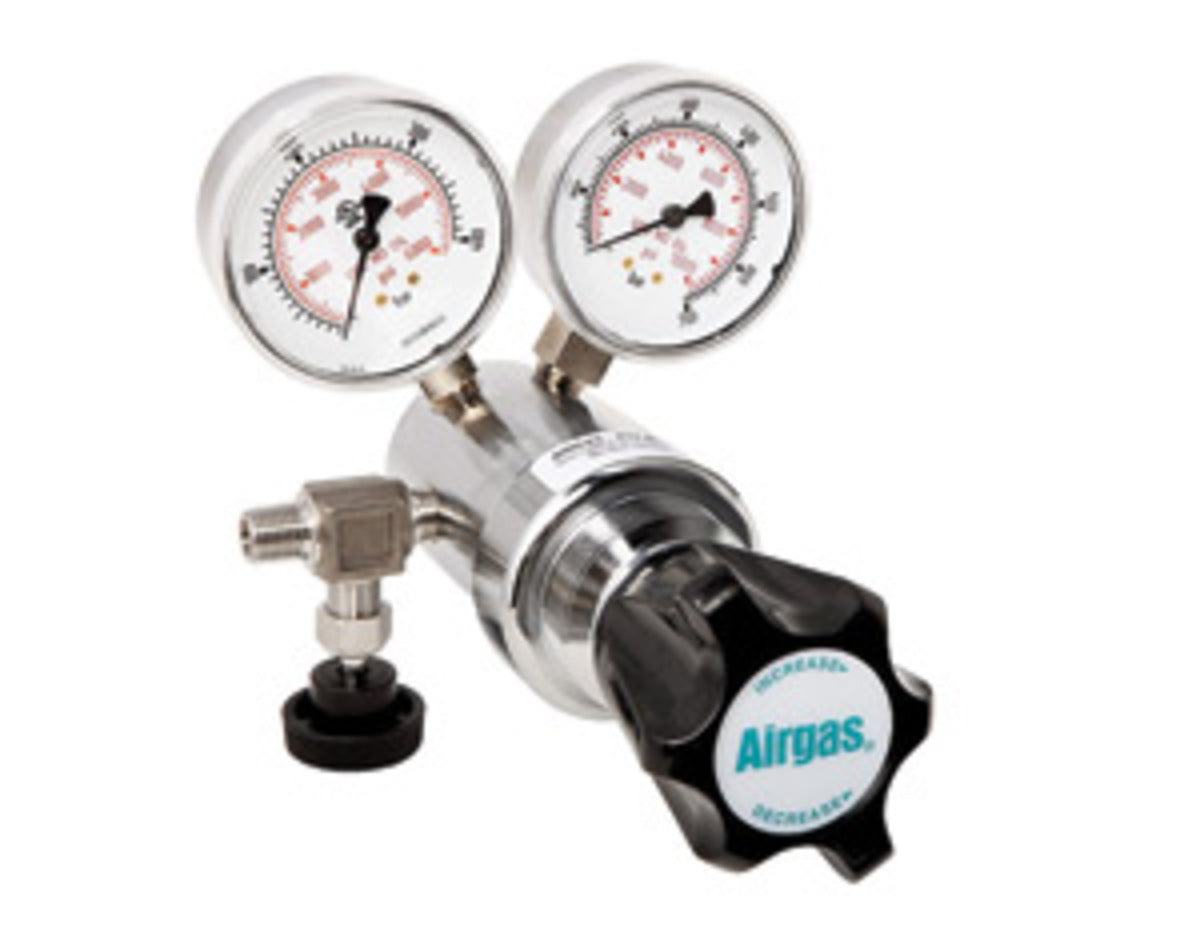

Designed for a wide range of pressure settings, these single-stage regulators are recommended for use in petroleum field applications, research laboratories for hydrogenation, catalytic reduction, accelerated age testing, calorimetric testing, component testing, and pressure testing applications. These regulators feature a rugged brass piston, which provides increased safety and reliability at high delivery pressures. A 25-micron inlet filter protects internal components.
Features
Rugged Brass Piston provides increased safety and reliability at high delivery pressures.
Bonnet Vent Ports (with optional bonnet vent adapters) allow venting of hazardous gases in the event of sensor O-ring failure.
Standard Threaded Bonnet (with optional collar mount nuts) permits panel mounting.
Ultrasonic Cleaning allows high-purity gas handling without costly pre-cleaning.
Specifications
Maximum Inlet Pressure: 6,000 psig
Maximum Outlet Pressure: 4,000 psig
Capacity: 10,000 scfh @ Max Delivery Pressure
Relief Valve Port: No
Inlet Gauge Range: 0 - 10,000 psig
Delivery Gauge Range: 0 - 6,000 psig
Flow Capacity: Cv=0.06
Ambient Operating Temperature: -15° F to +165° F
Design Leak Rate: Bubble-Tight (helium)
Weight: 3 lbs
Ports: (5) 1/4" FNPT
Decay Inlet Characteristic: 1.00/100 psi
