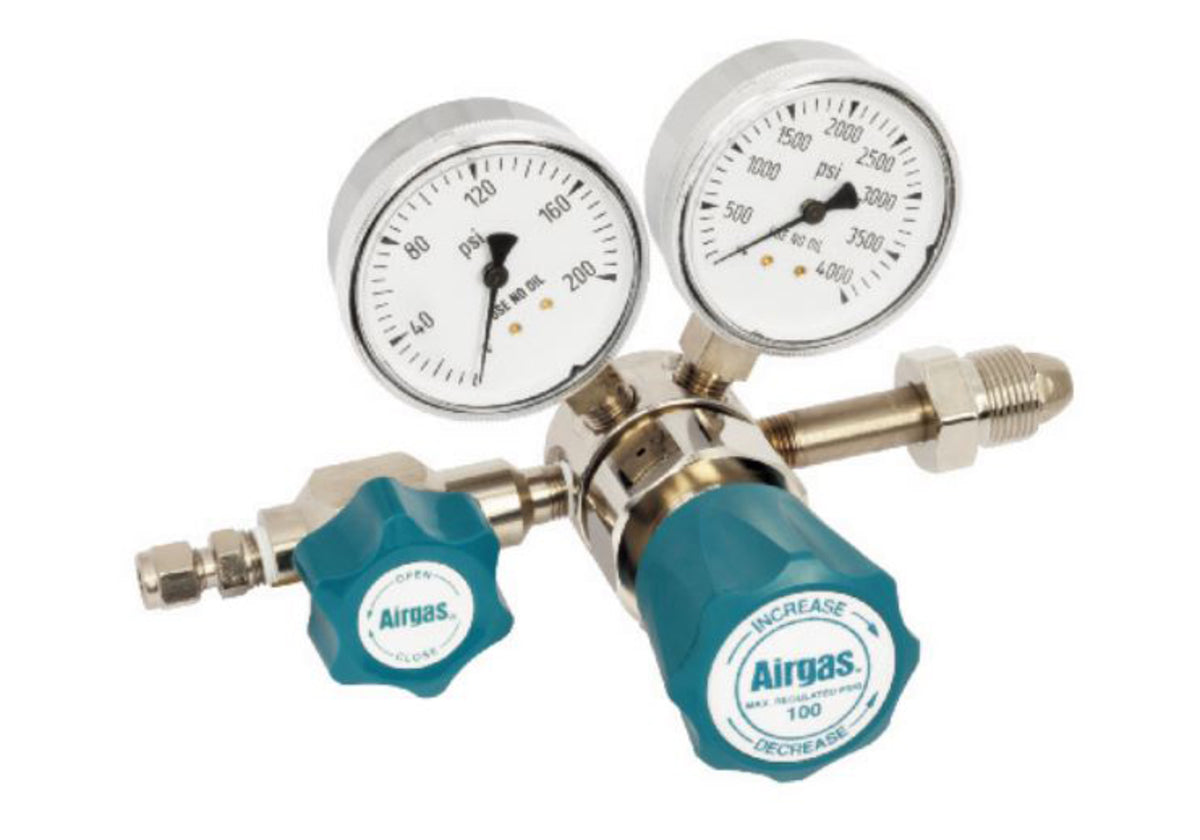

Airgas Model N245E580 Brass High Purity Single Stage Pressure Regulator With 1/4” FNPT Connection And Non-Lubricated Check Valve

Name: Airgas Model N245E580 Brass High Purity Single Stage Pressure Regulator With 1/4” FNPT Connection And Non-Lubricated Check Valve
Brand: ItsMyLe
Price: 696.0 USD
Availability: InStock

$696.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

These brass, single-stage, high-purity regulators are recommended for non-corrosive analytical and process applications where precise flow control is not critical. A specially designed, convoluted, stainless steel diaphragm with metal to metal seals provides good regulating performance and maximum purity integrity without the need for a soft seal, which often can be a source of contamination. These regulators come with a CGA-nipple that has a special high-purity, non-lubricated check valve incorporated into nose and prevents air and contaminants from entering the gas stream during cylinder change out. This creates consistencies in processes and extends column life in GC applications. Each regulator is capable of withstanding an internal vacuum and is provided with a diffusion-resistant, diaphragm packless outlet valve to maintain system purity. The optional bonnet vent adapter allows for the venting of hazardous gases in the event of diaphragm failure.

View full details

Model

» N245E580

Usage

» High Purity

Material

» Brass

Regulator Type

» Single Stage Regulator

Inlet Connection

» 1/4” FNPT

Outlet Connection

» 1/4” Compression

Max Outlet Pressure

» 150 psig

Gauge Diameter

» 2 1/2"

Features
Encapsulated Filter Seat Assembly: For added gas stream purity and extended service life. Convoluted Stainless Steel Diaphragms: Provides superior leak integrity without contamination from a non-metallic liner or seal. Bonnet Vent Ports (with Optional Bonnet Vent adapters): Allows venting of hazardous gases in the event of diaphragm failure. Metal-to-Metal Seal: For High Purity. Standard Threaded Bonnet (with Optional Collar-Mount Nuts): For easy panel mounting. Diaphragm Packless Valve (with 1/4” Compression Fitting): Promotes system purity. Six Outlet Pressure Ranges: Provides application pressure compatibility. CGA-Connection with Integral Check Valve: Prevents contamination during cylinder changeout.
Specifications
Maximum Inlet Pressure: 3,500 psig Inlet Gauge Range: 0 - 4,000 psig Outlet Pressure Range: 0 - 150 psig Capacity (scfh @ Max Del. Pressure): 2,000 Delivery Gauge Range: 0 - 200 psig Flow Capacity: Cv= 0.12 Ambient Operating Temperature: -40° F to +165° F Designed Leak Rate: 2 x10-8 ccs (helium) Weight: 4.6 lbs Ports: (5) 1/4" FNPT Decay Inlet Characteristic: 0.78/100 psi Seat: PTFE Filter: 316 Stainless Steel
Product Attributes
These brass, single-stage, high-purity regulators are recommended for non-corrosive analytical and process applications where precise flow control is not critical. A specially designed, convoluted, stainless steel diaphragm with metal to metal seals provides good regulating performance and maximum purity integrity without the need for a soft seal, which often can be a source of contamination. These regulators come with a CGA-nipple that has a special high-purity, non-lubricated check valve incorporated into nose and prevents air and contaminants from entering the gas stream during cylinder change out. This creates consistencies in processes and extends column life in GC applications. Each regulator is capable of withstanding an internal vacuum and is provided with a diffusion-resistant, diaphragm packless outlet valve to maintain system purity. The optional bonnet vent adapter allows for the venting of hazardous gases in the event of diaphragm failure.
