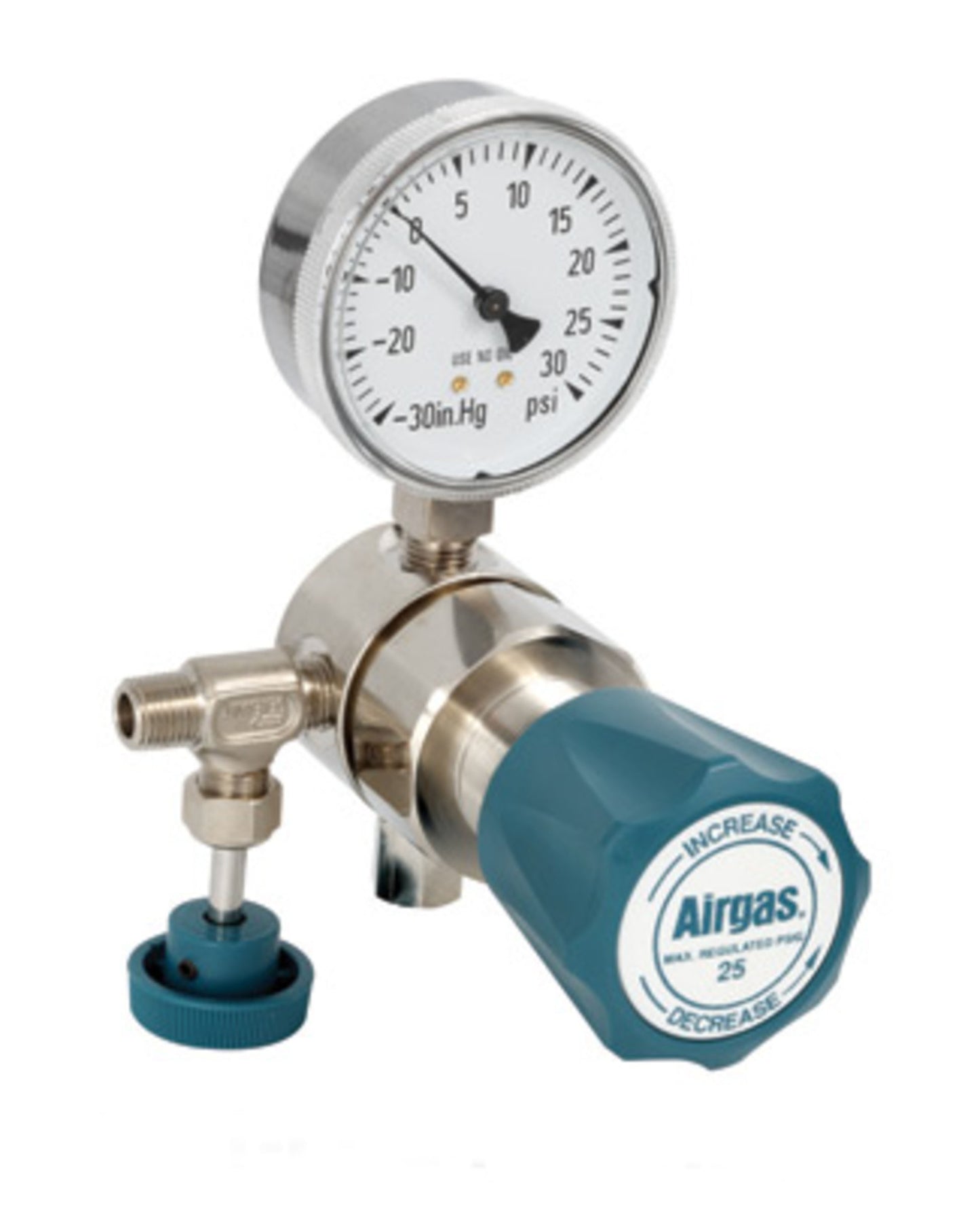

Airgas Single Stage Brass 0-100 psi Low Pressure Analytical Cylinder Regulator CGA-580

Product Description

This series of high-purity, single-stage regulators is designed for liquid cylinders, low-pressure mixes, and process applications where precise pressure control is not required. These regulators are recommended for non-corrosive analytical and process applications. This series is ideally suited for gas phase pressure regulation in liquid cylinder applications. The regulator body is machined from brass bar stock, which decreases internal volume and eliminates the large cavities and pockets associated with forged-body regulators. Attractive nickel-plating looks good and lasts for years of service.

Features

• Filtered Seat - for added gas stream purity and extended service life. Stainless Steel Diaphragms - eliminate out gassing associated with elastometric diaphragms. Bar Stock Body - with low internal volume minimizes atmospheric contamination during cylinder change out. Encapsulated Filter Seat Assy - protect valve seat, extend service life. Dewar Service - ideal for gas service from a liquid cylinder. Panel Mount Bonnet and (2) 10-32 Taps - for rear mounting.

Specifications

• Connection: CGA-580
• Stage: Single Stage
• Brand: Airgas
• Material: Brass
• Pressure: 0-100 psi
